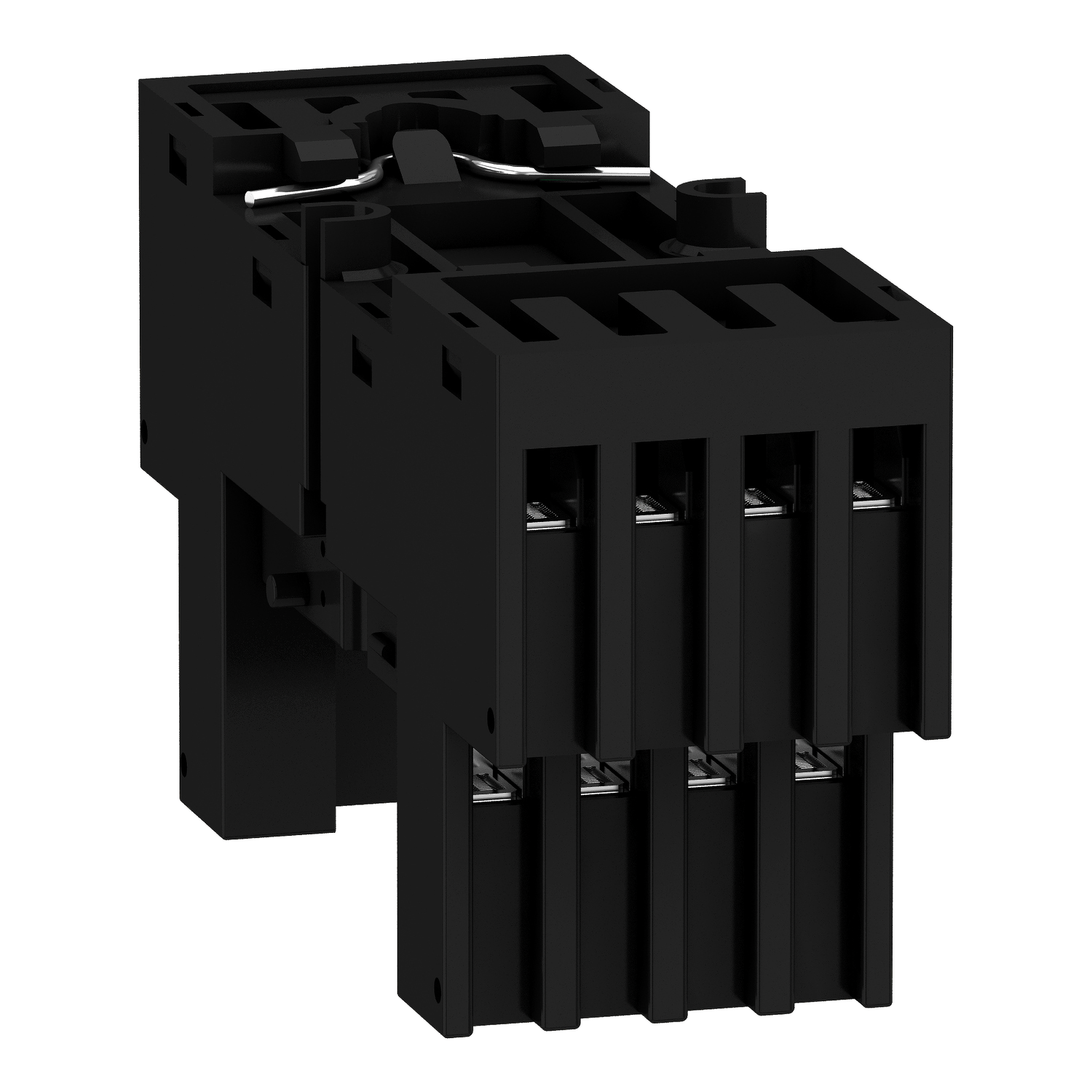

RXZE2M114M Schneider electric socket, Harmony Electromechanical Relays, for RXM2 RXM4 relays, screw connec to rs, mixed contact
RXZE2M114M Schneider electric socket, Harmony Electromechanical Relays, for RXM2 RXM4 relays, screw connec to rs, mixed contact
Old Price: AED 23
New Price: AED 11 (52%)
socket, Harmony Electromechanical Relays, for RXM2 RXM4 relays, screw connec to rs, mixed contact
This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).
| Range of product | Harmony Electromechanical Relays Harmony Timer Relays |
|---|---|
| Product compatibility | Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact Plug-in relay REXL with 2 C/O contact Plug-in relay REXL with 4 C/O contact Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | < 250 V conforming to IEC < 300 V conforming to UL |
|---|---|
| Connections - terminals | Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 27 mm |
| Net weight | 0.055 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
|---|---|
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL CSA Lloyd's |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.300 cm |
| Package 1 Width | 2.700 cm |
| Package 1 Length | 7.500 cm |
| Package 1 Weight | 55.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.800 cm |
| Package 2 Width | 9.000 cm |
| Package 2 Length | 14.400 cm |
| Package 2 Weight | 584.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 230 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 13.694 kg |
| Warranty | 18 months |
|---|
